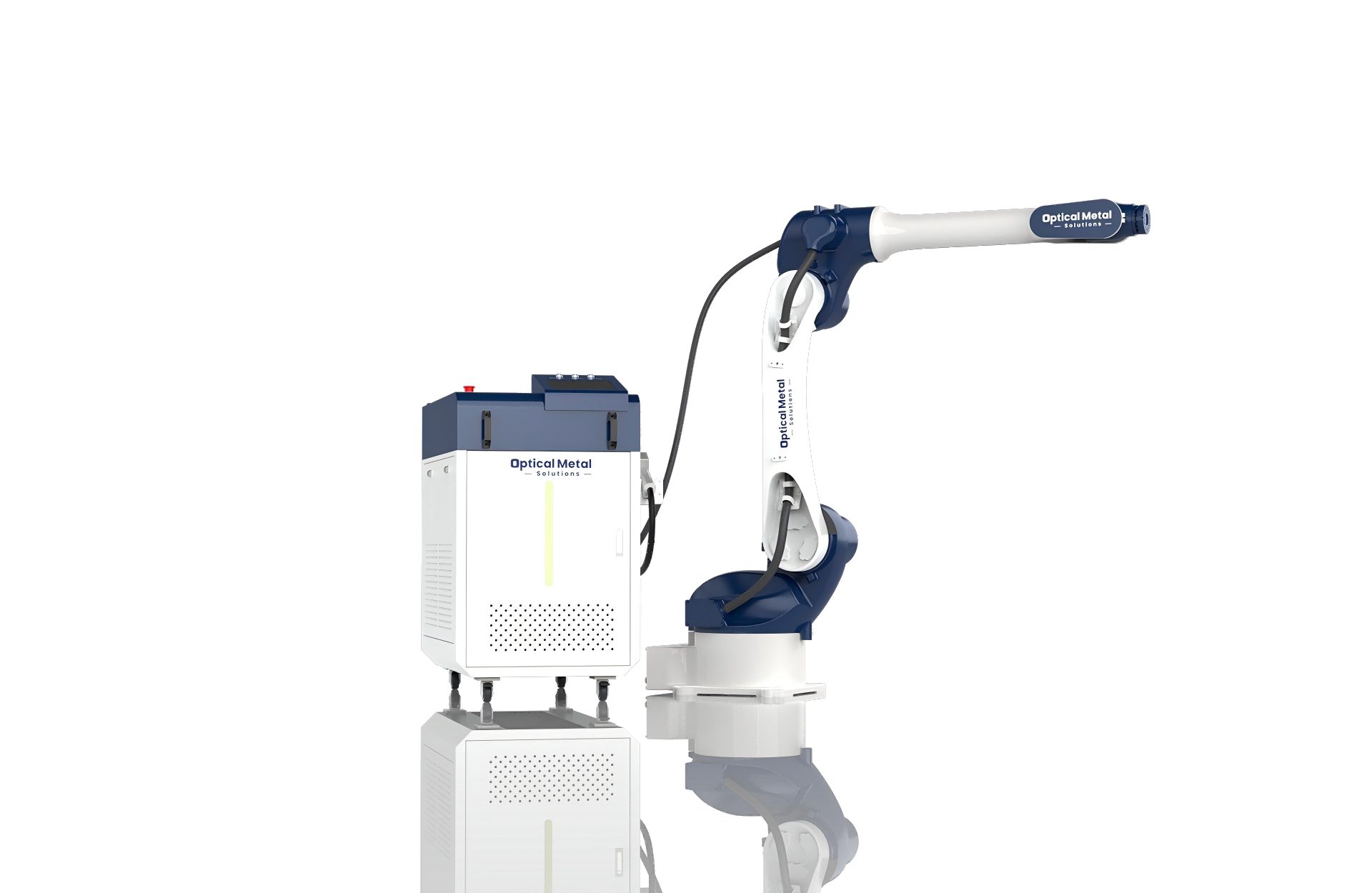

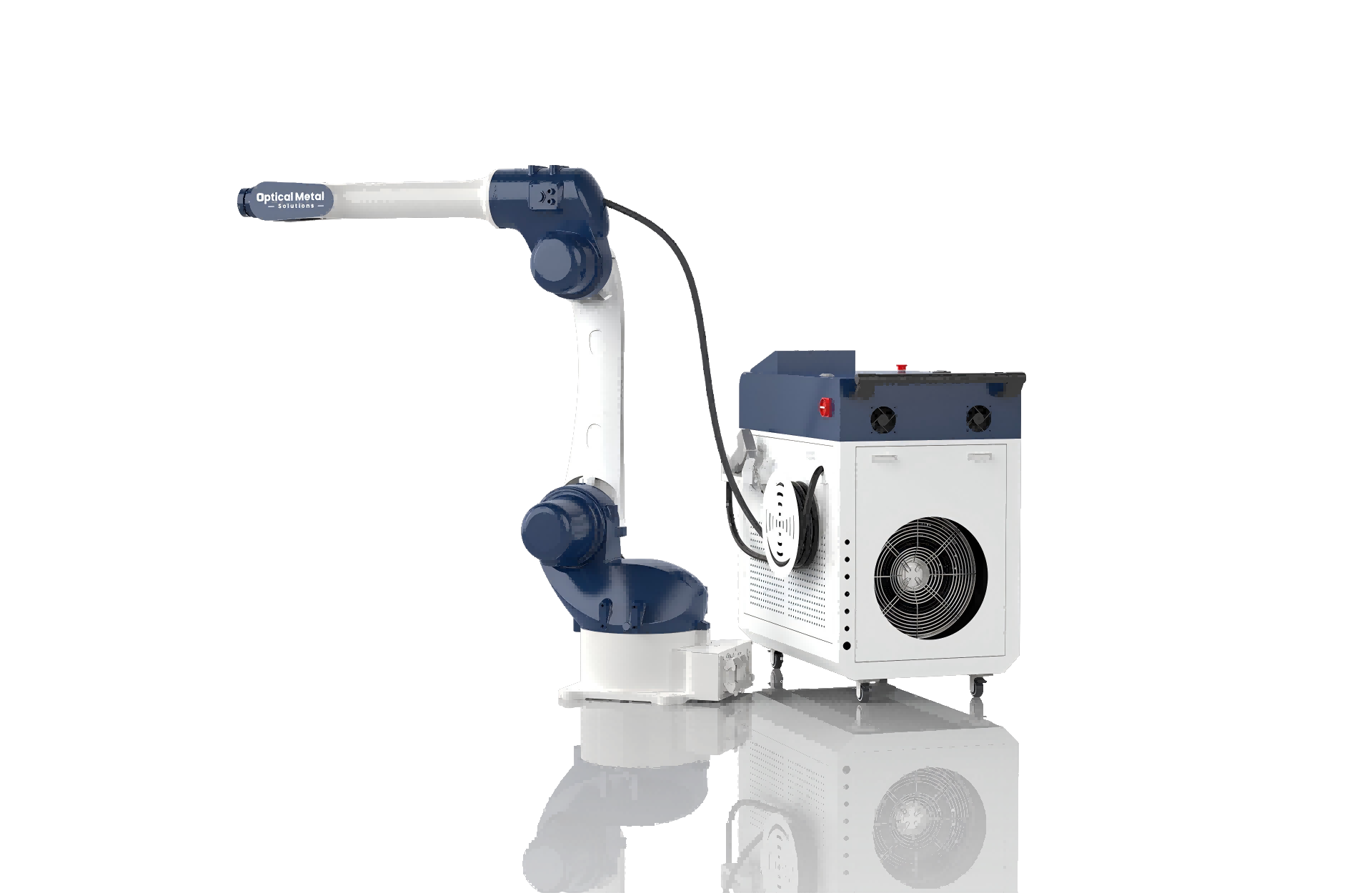

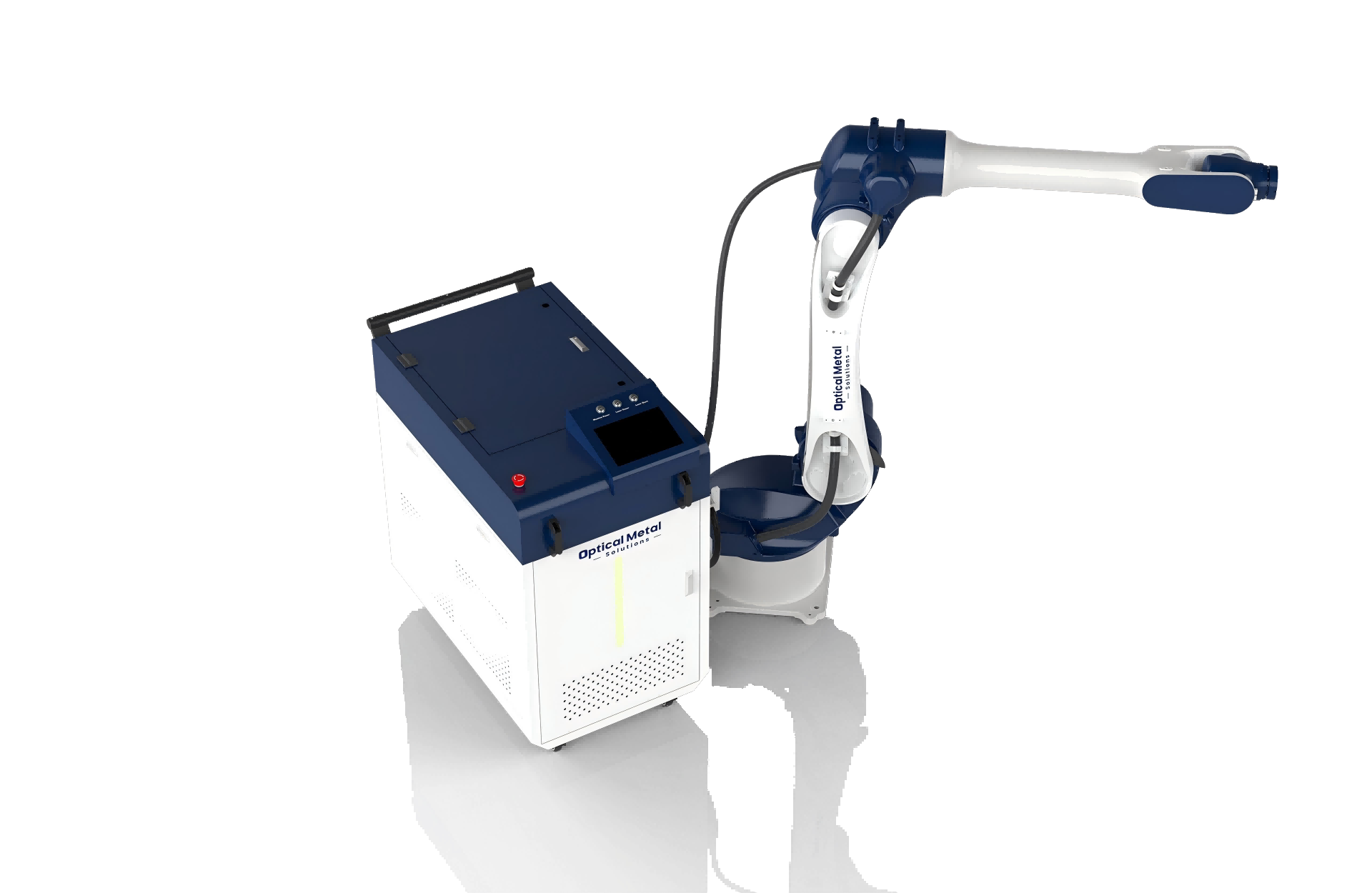

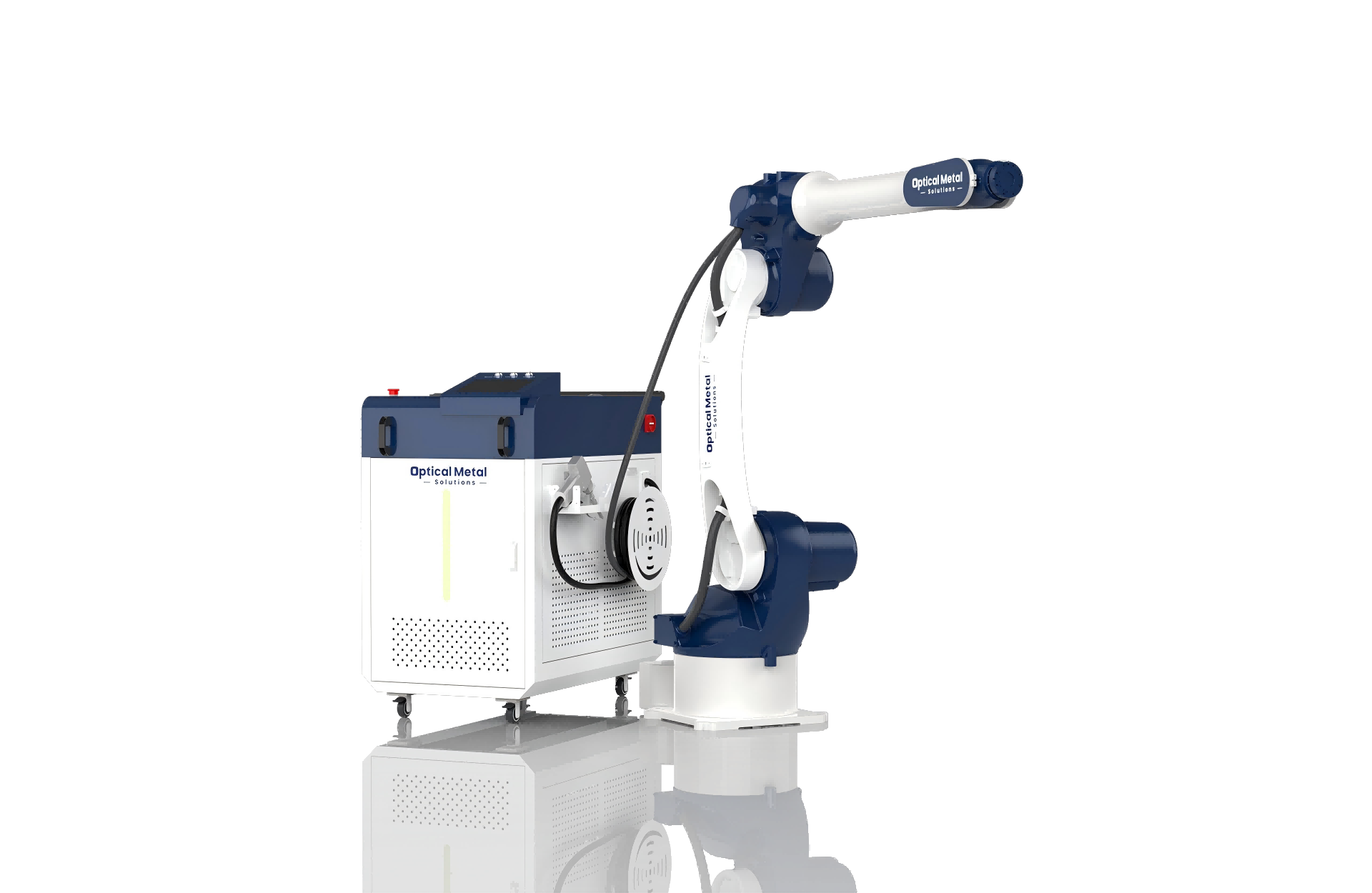

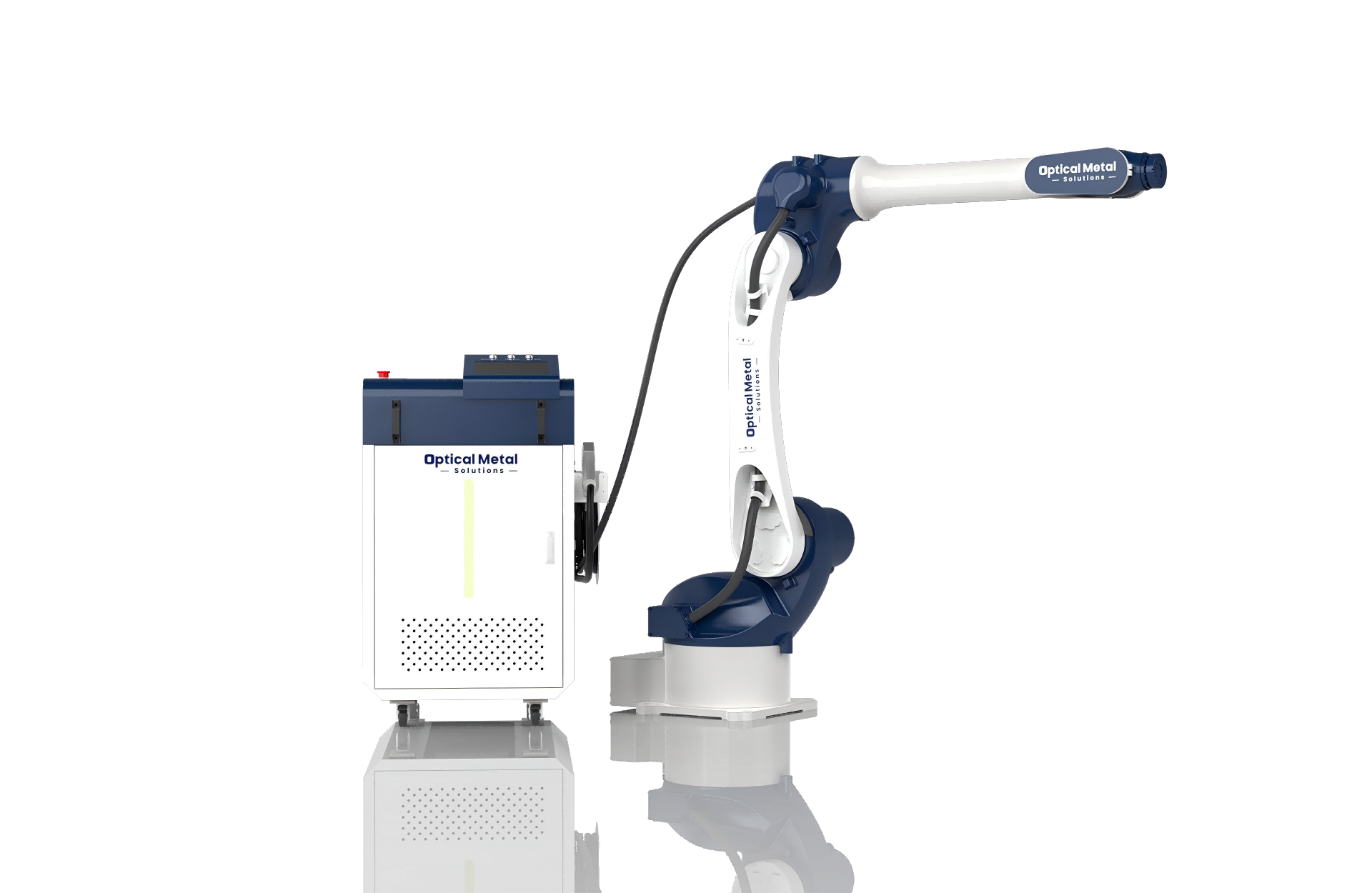

Robotic & Customized Laser Welding Machine
Compatible with any OMS laser welding machines from water-cooled to air-cooled models and from manual to automatic laser welding heads
Multiple choices of laser welding heads with different features for different applications from metalworking to battery production: manual water-cooled model, manual air-cooled model and automatic model. Supporting one head for several functions: welding, cutting, seam welding, professional cleaning, one machine for no-limit functions
Easy-to-set parameters make the programming easier and more efficient
Powers up to 6kW and welding presets up to 64
Specific laser application robotic arm allowing setting & control of laser and welding parameters by robot
High customization for structure, auxiliary devices and safety protection
Laser Welding Robot Features:
High precision & accuracy
Non-contact process, minimal heat deformation, excellent weld quality
High speed, cost efficiency in mass production
High flexibility, high customization
No filler material possible in some cases
OMS Laser Welding Robot:
Specific 6-axis laser welding robot supporting laser and welding parameters, featuring controllable power, wire feeding, soft start and stop, pre-laser emission and stop, wire sticking detection, pre-wire extraction, wire replenishment, etc...
Providing different choices to laser source types & powers, laser welding heads
Compatible to handheld laser welding gun and automatic lasre welding head
Built-in UPS supporting power regeneration after outage
Compact electrical cabinet can be integrated in laser machine
Highly customized structure and conception
Technical Specification:
| Model | Automate 15-12 | Automate 18-20 | Automate 20-12 |
| Arm Radius | 1554 mm | 1821 mm | 2015 mm |
| Arm Load | 12 kg | 20 kg | 12 kg |
| Body Weight | 170 kg | 288 kg | 262 kg |
| Installation Method | fomal instllation/inverted installation/side installation | ||
| Electrical Voltage&Frequency | 220V/380V 50/60Hz | ||
| Laser Power | up to 6000W | ||
| Laser Welder Type | handheld or automatic; water-cooled or air-cooled | ||
| Wire Feeding | steeper motor or servo motor driven feeder; internal control or external control | ||
| Remote Control | Yes | ||
| Functions Extension | Yes | ||
| External Axis | Yes (optional 2) | ||
