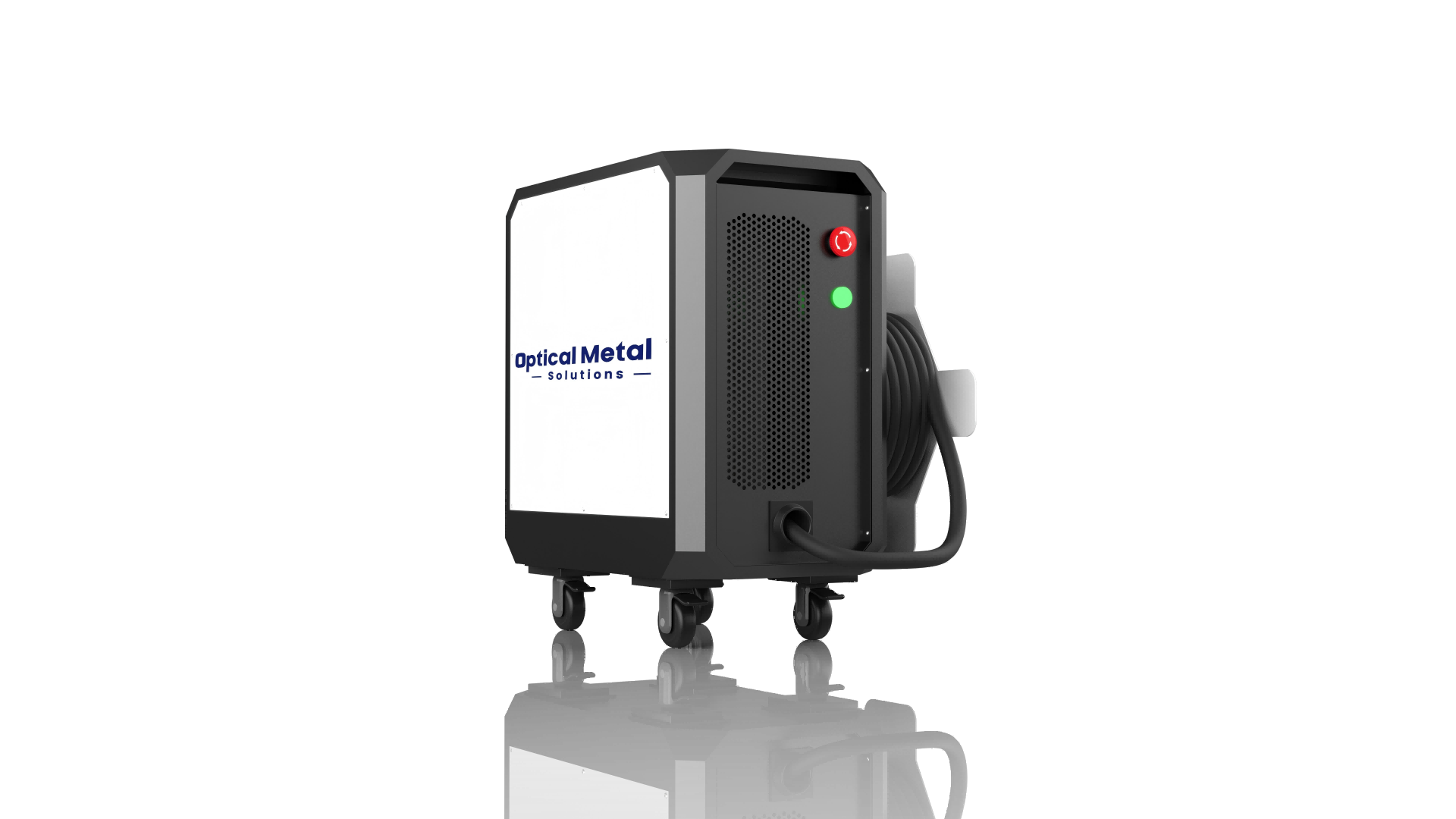

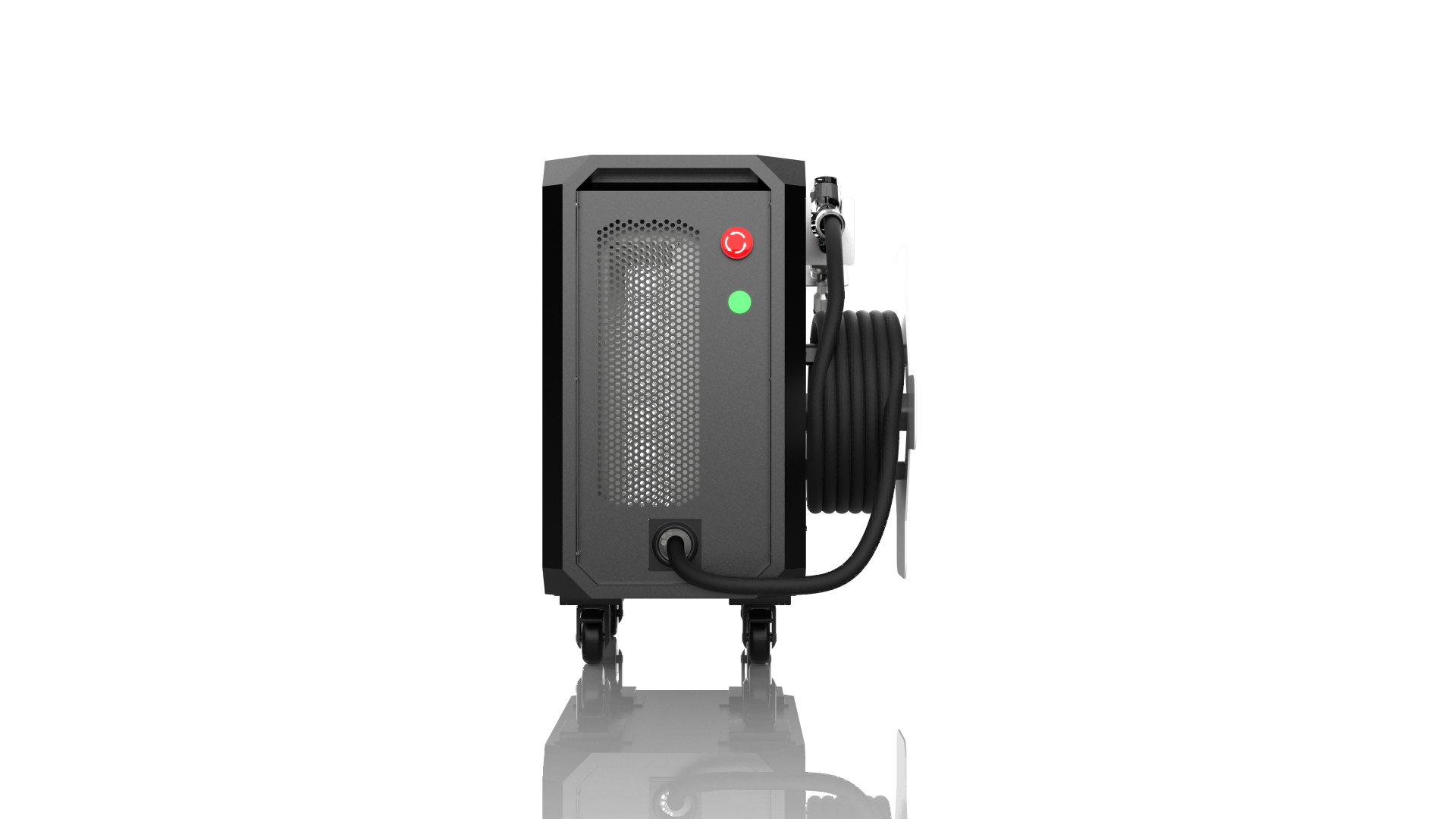

MOPA Fiber Laser Cleaner

OMS MOPA laser cleaner:

  • High peak energy & instantaneous ablation

Pulsed laser delivers ultra-high instantaneous peak power, which quickly vaporizes and strips contaminants, rust, oxide layers and coatings.

  • Ultra-low thermal impact

Short pulse duration effectively controls heat accumulation. It causes almost no thermal deformation, carbonization or thermal damage to the base material.

  • High-precision selective cleaning

It achieves localized, micro-area and precise cleaning. It can remove surface impurities accurately without damaging the intact substrate.

  • Strong cleaning capability

Suitable for thin plates, precision parts, electronic components and high-precision workpieces sensitive to heat.

  • Environmentally friendly dry cleaning

No chemical additives, no mechanical contact, no secondary pollution, low dust and safe operation.

  • Flexible process adjustment

Pulse frequency, pulse width and energy can be flexibly adjusted to meet different cleaning demands.

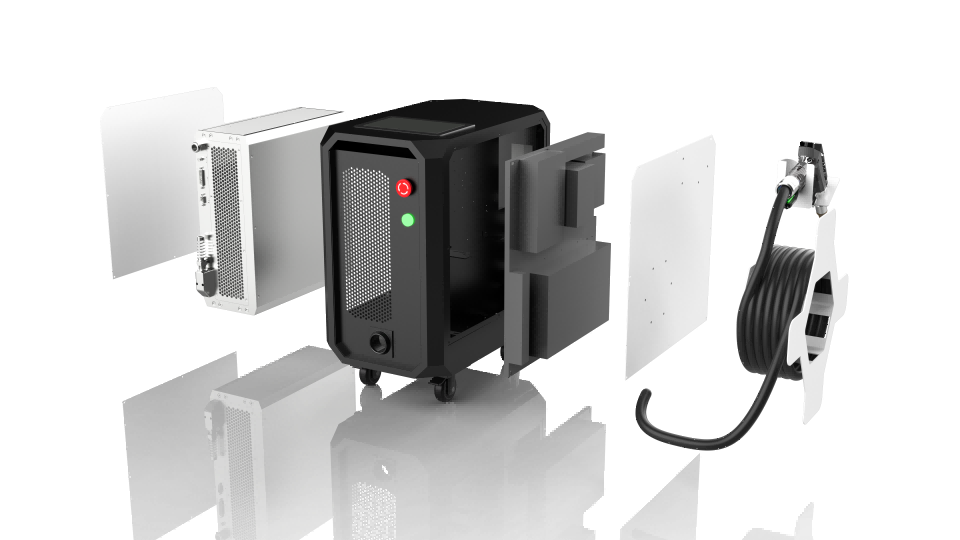

Product Details



MOPA Fiber Laser Cleaner Stable Laser Generation System

MOPA Fiber Laser Cleaner  Highly Stable Laser Gun

  • New generation optical path design

  • Weight less than 0.69 kg

  • New core technology of fiber gain control

  • Dust-proof sealing design

  • High output power improving single pulse energy

  • Scanning dimension up to 200×200mm

  • Compact design, free maintenance

  • Scanning speed up to 3000mm/s

  • Wide application including highly reflective materials

  • High anti-interference ability


MOPA Fiber Laser Cleaner Straightforward Digital Control System

MOPA Fiber Laser Cleaner Electrical Control System

  • Touchable screen control

  • Best brands: Schneider, Omron, Weidmuller, etc...

  • Easy-to-understand interface

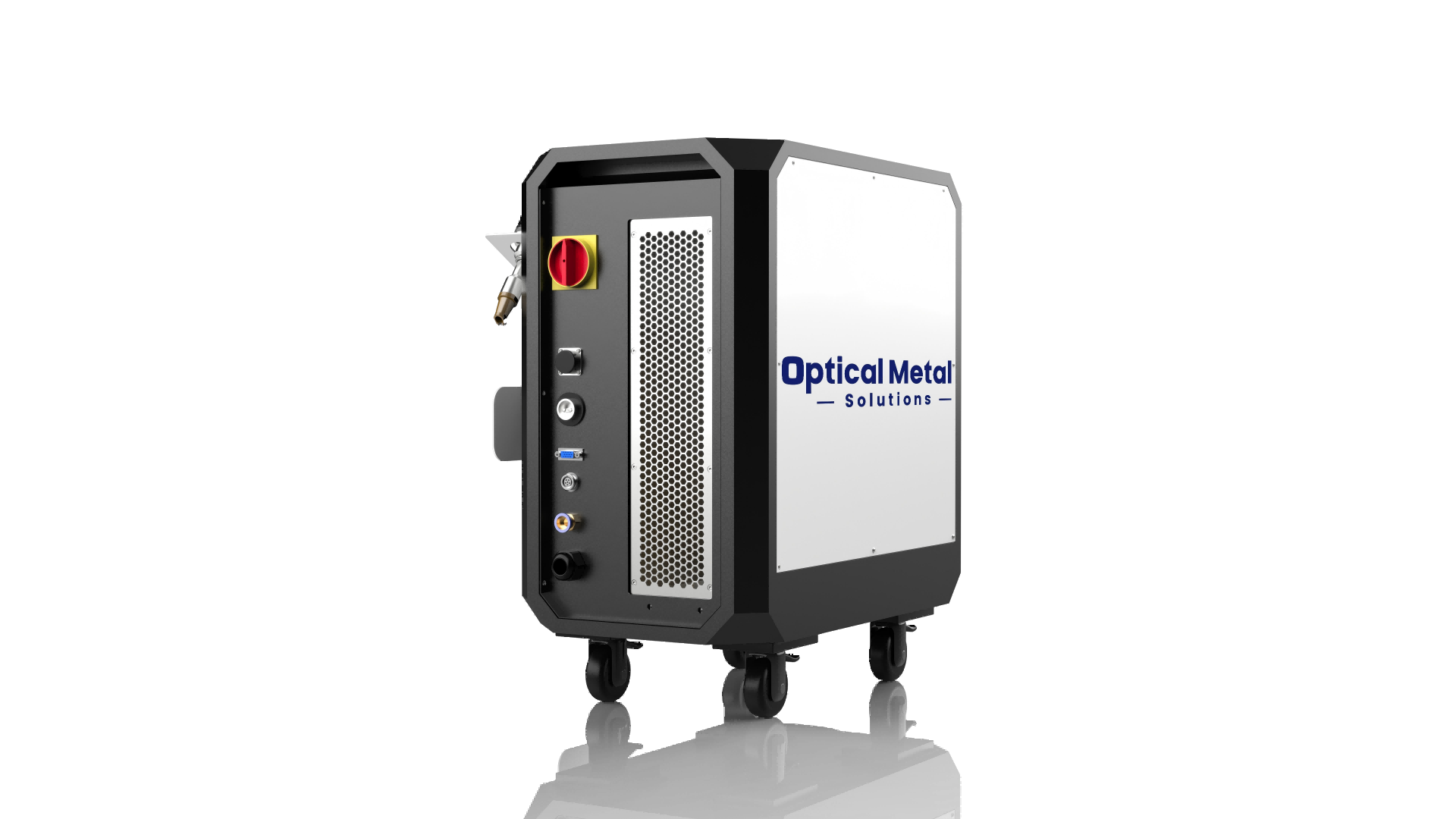

MOPA Fiber Laser Cleaner Operation Safety

MOPA Fiber Laser Cleaner Functions Extension Holes

  • Main power isolation switch and eye-catching emergency stop button

  • Reserved functions extension holes

  • Machine's status colorful light



Technical Specification

Power

100W

200W

300W

500W

Laser Wavelength

1064±5nn

Fiber Length

6m

10m

Electrical Voltage

AC 24V

AC 220V/380V

Electrical Currency

3.2A

5.5A

6.8A

10A

Power Consumption

≤100W

1.2kW

1.5kW

2.2kW

Scanning Type

—| ○ □MOPA Fiber Laser Cleaner

Cooling Method

Air cooling

water cooling

Cleaning Dimension

up to 200×200mm

Operation Method

manual /automated
